Quabbin 9720 22 gauge T1 2 pair solid individual foil riser cable

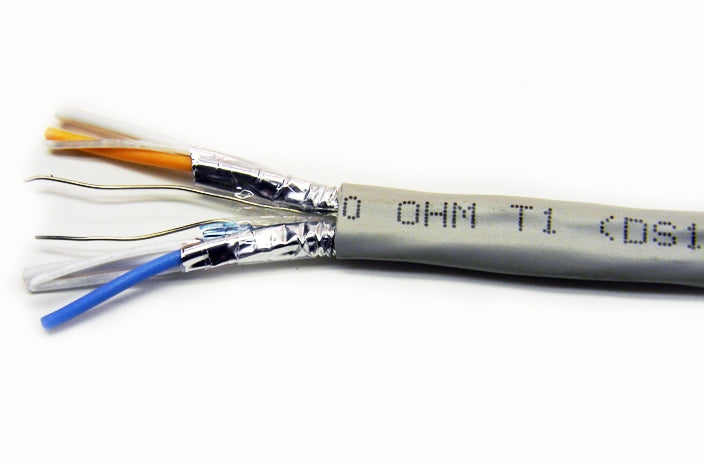

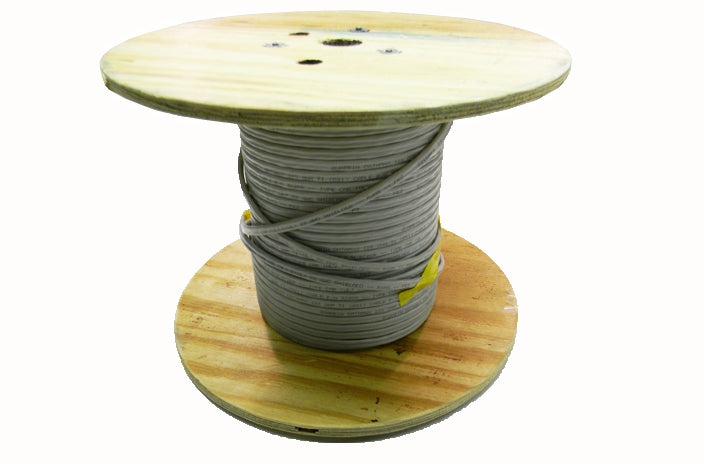

Quabbin 9720 T1, 22 gauge, 2 pair, solid tinned copper conductor individually foil shielded communications cable. Quabbin 9720 comes with 2 drain wires, beige PVC jacket, and is CEC c(UL) CMR (riser rated). For T-1 (DS-1) or XDSL interconnection within and from central office environments using modular connectors. 1000 feet per Spool.

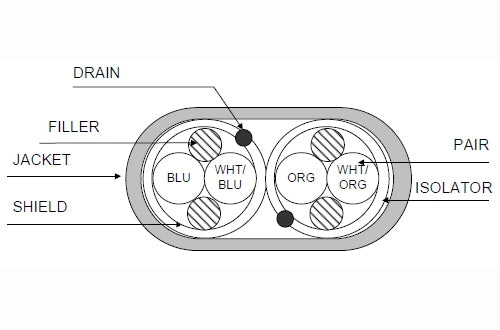

• The unique 2 stage layer insulation design gives you a robust outer insulation and at the same time you can remove the outer insulation layer to fit modular connectors.
• solid 24 gauge drain wires.
• Each pair comes with an isolated aluminum polyester tape for extra shielding
• Easily identifiable colour code.
• Special cuts available, call account manager for details.

9720 Quabbin 22 gauge T1 2 pair solid individual foil riser cable - Product Specifications
